Extraction Fan for Dusty Air

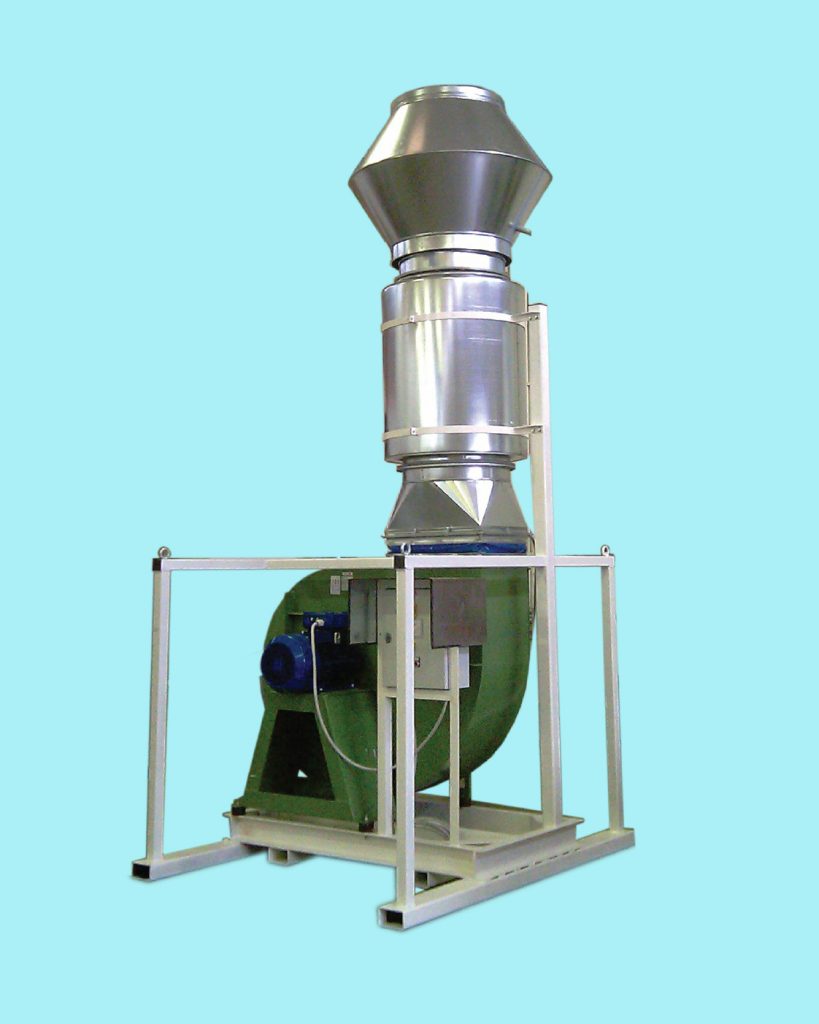

Portable of fixed type exhaust fan, designed and constructed to suit every specific application.

In both cases fan is installed in a robust frame made of steel beams with polyurethane painting to prevent the corrosion (stainless steel AISI 304 or AISI 316L on request).

Exhaust fans employed come only of a primary brands, have impellers with backward curved blades and are particularly suitable for the pneumatic conveyance of dust-laden. Efficiency value up to 83%. Asynchronous three-phase motors according to international standards IEC 60034, IEC 60072, EMC 2004/108/CE, LVD 2006/95/CE, CE marked, IP 55, class F. Suitable for S1 service (continuous working at constant load).

Standard configuration: Direct Drive

Option: Belt Drive

Maximum fluid temperature: +60°C in standard version (+ 150°C in continuous with peaks of 180°C available on request. Max T°C value can increase up to 200°C for belt drive).

The Air fan standard construction is in carbon steel painted as per standard manufacturers (Stainless steel AISI 304 or 316L available on request).

In case of Industrial fixed application with continuously use, such as exhaust system for welding fumes, or grinding powders, or woodworking, etc., we can provide an automatic filtering also (air-compressed type) designed case by case depending on the type of material.

Electric switchboard for Power and control can be provided on request. Where electric switchboard is fitted on skid it will supplied already cabled.

Standard feed provided is 400V/3ph/50Hz (other option available on request)


Pneumatic conveyance of dust-laden air;

Drying systems;

Forced draught (flues);

Welding fume extraction;

Conveyance of sawdust and short wooden chips


Directive 2006/42/EC (EU Machinery Directive)

Directive 2014/35/EU (Low Voltage Directive)

Directive 2014/30/EU (EMC Directive)

Directive 2014/34/EU (ATEX Directive)


Sound Attenuator on inlet/Outlet openings;

Flexible duct on inlet/Outlet openings;

High pressure ductwork;

Articulated arms or hoods

Other on request
